SMT Scharf Group is the leading supplier of rail-bound transport systems. Extensive knowledge, worldwide presence, high-performance products and long standing competence in solving difficult transport tasks from the foundation of our worldwide reputation in mining, tunnelling and other industries.

SMT Scharf products are distributed in Australia by INORAiL.

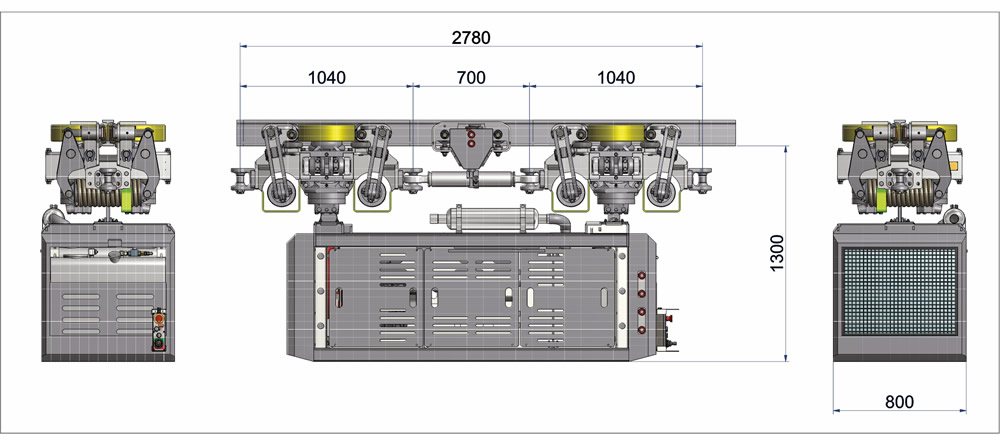

EMTS (Electric Monorail Transport System)

The EMTS (Electric Monorail Transport System) has particularly been designed for the underground transport of men and material in non-explosive atmospheres. With a load carrying capacity of 30 tons and the ability to drive systems gradients of more than 30 degrees the EMTS can make transport in inclined gateroads considerably more efficient.

Features

  • Self-propelled monorail with integrated electrical hoisting devices
  • High torque electrical devices
  • Frequency converter technology including energy recovery
  • 4 drive units with total pulling force 80 kN
  • Load monitoring and control system
  • Driver cabin with on board diagnostic and multifunction joystick
  • Trap-guided trolleys with fail-safe brake system

Advantages

  • Flexible transport of equipment, material and men
  • Zero-emission transport technology continuous to go from 0-30 degrees incline
  • Smooth and efficient speed control for safe and comfortable operation
  • High speed (up to 3.5 m/s) and powerful transport of heavy loads (up to 30 tons)
  • Short instruction time, simple operation and high availability
  • Safe operation, certified according to international standards
  • Technical data EMTS 2+2

Technical data EMTS 2+2

No. of drives:
4
No. of brakes:
8
Min. train length:
Appr. 14 m
Min. train weight:
9,200 kg
Total pulling force:
80 kN
Electric motor:
4 * 29 kW
Voltage:
525 V (+/-10%) 3-phase AC
Speed:
Up to 3.5 m/s
